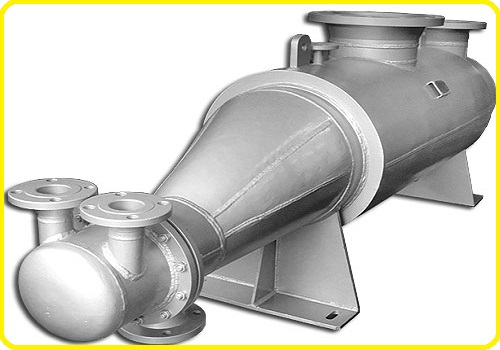

Distillation column with Re boiler Kettle

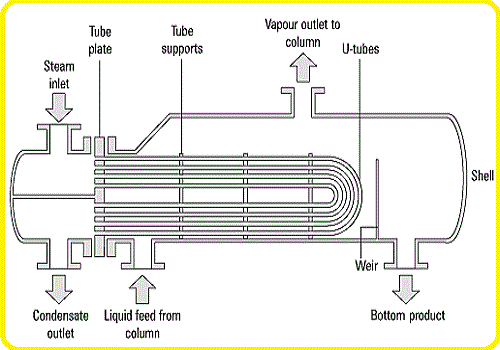

We Manufacture Distillation column with Re boiler Kettle are typically used to provide heat to the bottom of industrial distillation columns. They boil the liquid from the bottom of a distillation column to generate vapors which are returned to the column to drive the distillation separation. Image depicts a typical steam heated kettle reboiler. Kettle reboilers are very simple and reliable. They may require pumping of the column bottoms liquid into the kettle, or there may be sufficient liquid head to deliver the liquid into the reboiler.
Product Code : DC-RK
Features
- Reboiler has a less-sensitive operation than vertical types.
- Easier maintenance due to horizontal orientation.
- More suitable for wide boiling mixtures.

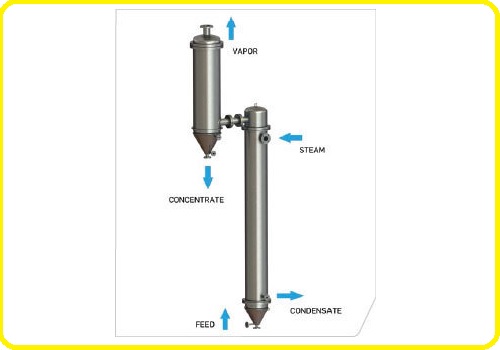

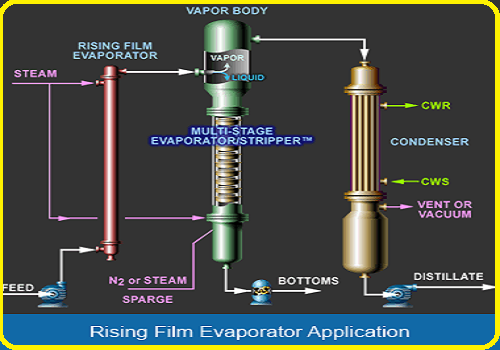

Rising Film Evaporator
A Rising Film or vertical long tube evaporator is a type of evaporator that is essentially a vertical shell and tube heat exchanger. The liquid being evaporated is fed from the bottom into long tubes and heated with steam condensing on the outside of the tube from the shell side. This is to produce steam and vapour within the tube bringing the liquid inside to a boil. The vapour produced then presses the liquid against the walls of the tubes and causes the ascending force of this liquid. As more vapour is formed, the centre of the tube will have a higher velocity which forces the remaining liquid against the tube wall forming a thin film which moves upwards. This phenomenon of the rising film gives the evaporator its name.
Product Code : RFE

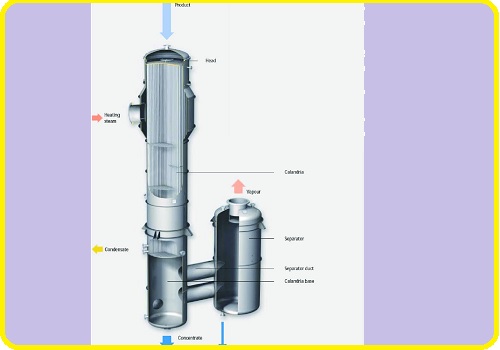

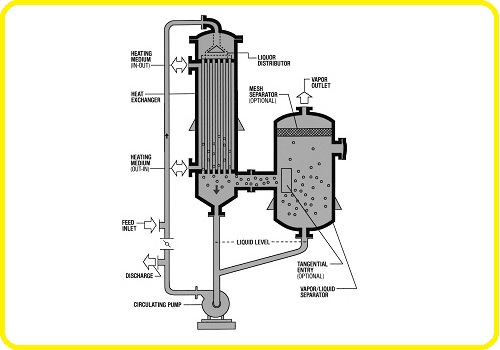

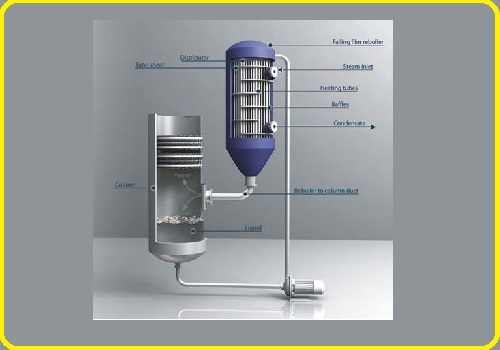

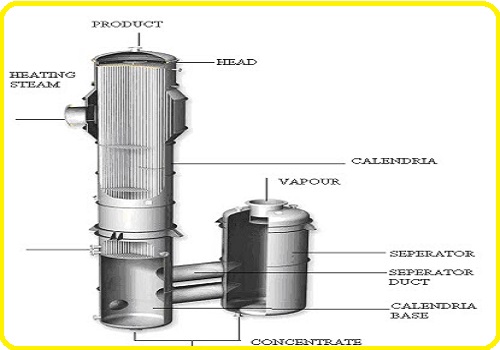

Falling Film Evaporator
Falling Film Evaporators offer distinct operating advantages in the concentration of many materials, such as certain food products, fruit juices, pharmaceuticals and similar materials, which are particularly suited to evaporation in this type of equipment. Our Falling Film Evaporators are unique in that they utilize novel operating principle from other types. The dilute liquid is fed to the top of the tubes, flows downward as evaporation occurs.
Product Code : FFE

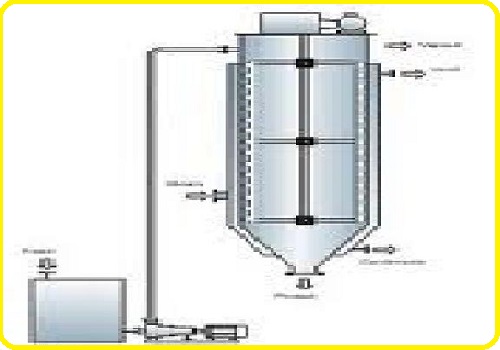

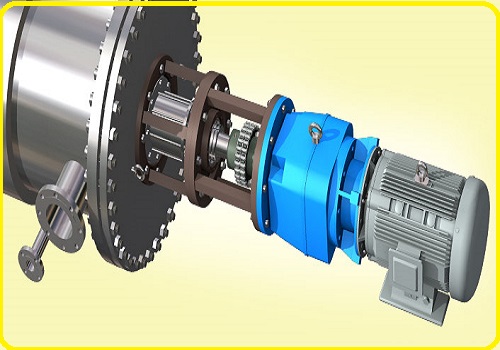

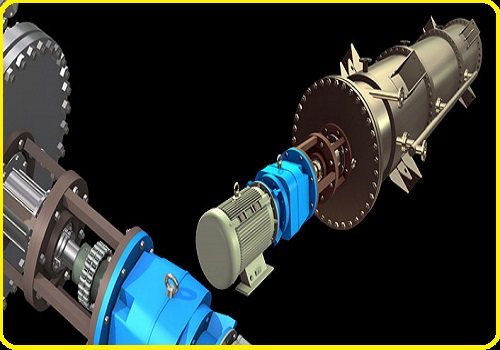

Agitated Thin Film Evaporator
The Agitated Thin Film Evaporator is best suitable for heat sensitive product. It gives due care to product drying time and drying temperature which are very critical.Agitated Thin Film Evaporators have wide use in chemical, pharmaceutical & food processing industry. Our Agitated Thin Film Evaporator is used for drying, vacuum distilling, separation and concentration of liquid feed.
Product Code : HRS
Features
- Operating pressure from atmospheric to full vacuum
- Operating temperature up to 3000 C

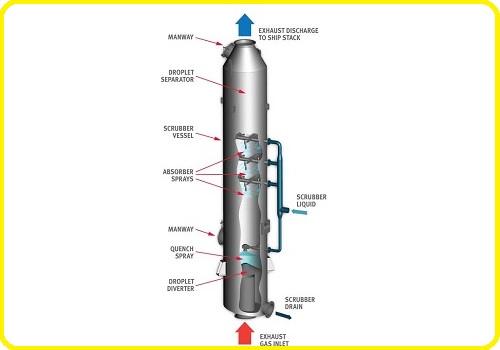

Scrubber
Our custom design Industrial Scrubber is generally installed on chimneys or air exhaust systems to control pollution. These are made of high graded raw material with the help of sophisticated machines and latest technology.
Product Code : HRS
Features
- Ability to handle high temperatures & moisture
- Compact
